NEC Compliance Checklist for Residential Hybrid Solar Inverters in the US

AdminMy Store

When installing a residential hybrid solar inverter in the United States, performance is only part of the equation.
Code compliance is equally critical.

Many homeowners and installers ask:

  • Is this hybrid inverter NEC compliant?

  • Will it pass inspection?

  • Is it safe for split-phase 120/240V homes?

This article provides a clear, practical NEC compliance checklist specifically for hybrid solar inverters used in US residential systems.

Why NEC Compliance Matters

The National Electrical Code (NEC) governs how electrical systems are installed and inspected in the US.

Non-compliant systems may result in:

  • Failed inspections

  • Insurance issues

  • Safety risks

  • Costly rework or replacement

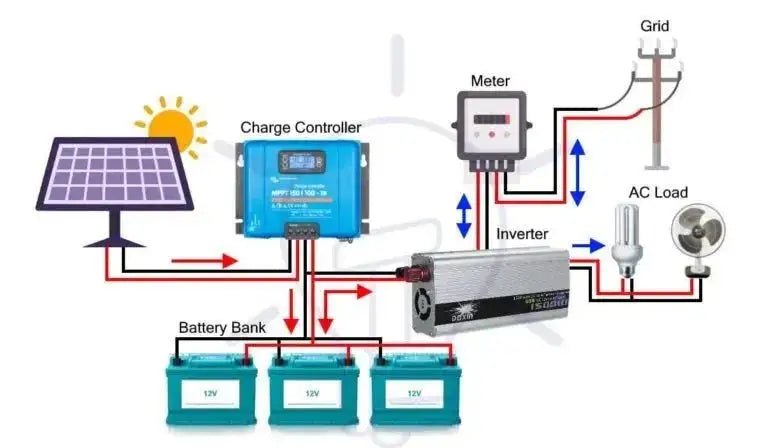

Hybrid solar systems interact with:

  • Utility grids

  • Batteries

  • Backup loads

This makes compliance even more important than standard grid-tied systems.

1. Anti-Islanding Protection (NEC 705)

All grid-connected inverters must include anti-islanding protection.

This ensures the inverter:

  • Shuts down when the grid fails

  • Prevents back-feeding power to utility lines

For hybrid inverters, this protection must work seamlessly with backup operation, isolating the home while continuing to supply internal loads.

✅ Checklist:

  • Automatic grid disconnection

  • Certified anti-islanding function

2. Split-Phase 120/240V Output Compatibility

Most US homes use split-phase power:

  • Two 120V legs

  • One 240V phase

A compliant hybrid inverter must:

  • Provide balanced 120V output

  • Support true 240V loads

  • Maintain stable voltage during backup mode

⚠️ Single-phase or transformer-based solutions often fail inspections.

✅ Checklist:

  • Native split-phase 120/240V output

  • Designed for US residential panels

3. Neutral and Ground Bonding (NEC 250)

Improper neutral-ground bonding is one of the most common inspection failures.

Hybrid inverters must:

  • Follow correct bonding rules in grid mode

  • Switch bonding correctly during off-grid operation

  • Avoid multiple neutral-ground bonds

✅ Checklist:

  • Clear bonding documentation

  • Automatic or configurable bonding logic

4. Rapid Shutdown Compatibility (NEC 690.12)

Most residential solar systems in the US require rapid shutdown capability.

While this often involves:

  • Module-level electronics

  • External rapid shutdown devices

The inverter must:

  • Support shutdown signaling

  • Integrate properly with rooftop safety systems

✅ Checklist:

  • Rapid shutdown support

  • Compatible communication ports

5. Overcurrent Protection & Load Management

Hybrid systems must safely handle:

  • Continuous loads

  • Surge loads

  • Battery discharge limits

Inverters should include:

  • Built-in protections

  • Clear load ratings

This is especially important for:

  • HVAC systems

  • Well pumps

  • High-surge appliances

✅ Checklist:

  • Documented surge capacity

  • Integrated protection systems

6. Battery Safety & BMS Integration (NEC 706)

If batteries are used, they must comply with:

  • Energy storage system rules

  • BMS communication requirements

  • Safe charging and discharging limits

LiFePO4 batteries are preferred due to:

  • Thermal stability

  • Long cycle life

  • Lower fire risk

✅ Checklist:

  • Compatible battery chemistry

  • BMS communication support

  • Certified battery interfaces

7. Clear Installation Documentation

Inspectors expect:

  • Wiring diagrams

  • Operating modes explanation

  • Labeling and warnings

High-quality hybrid inverter manufacturers provide:

  • US-specific manuals

  • Clear installation instructions

✅ Checklist:

  • NEC-referenced documentation

  • Backup mode explanation

Common Reasons Hybrid Inverters Fail Inspection

  • No split-phase output

  • Incorrect neutral-ground bonding

  • Lack of rapid shutdown support

  • Poor documentation

Choosing a US-designed hybrid inverter eliminates most of these risks.

Final Thoughts

A residential hybrid solar inverter in the US must do more than convert power.
It must meet strict NEC safety and performance standards while delivering reliable backup power.

For homeowners and installers alike, choosing an inverter that is designed specifically for US split-phase systems and NEC compliance ensures:

  • Faster inspections

  • Safer installations

  • Long-term reliability
