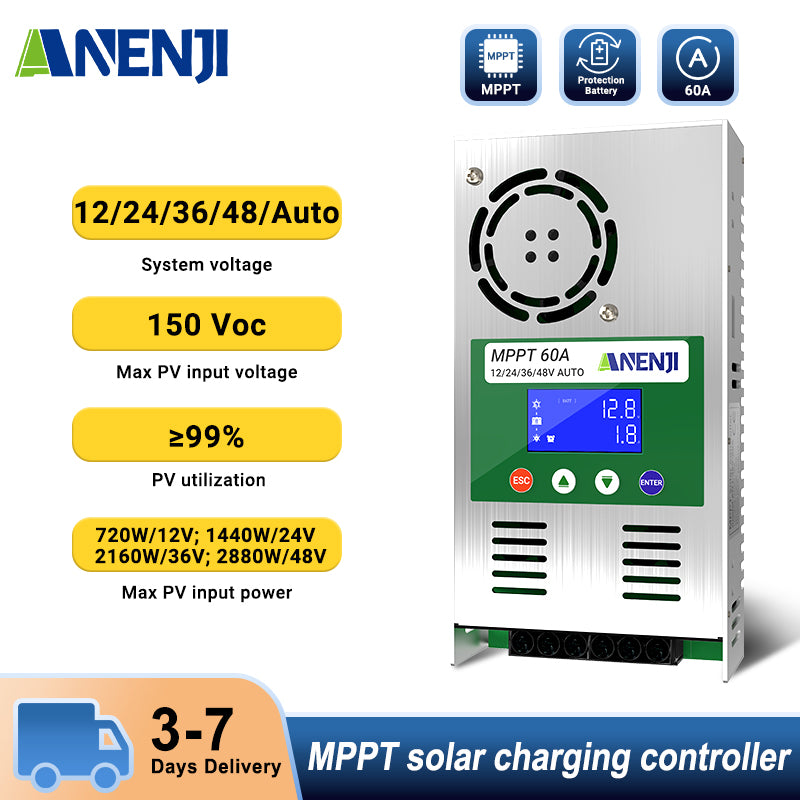

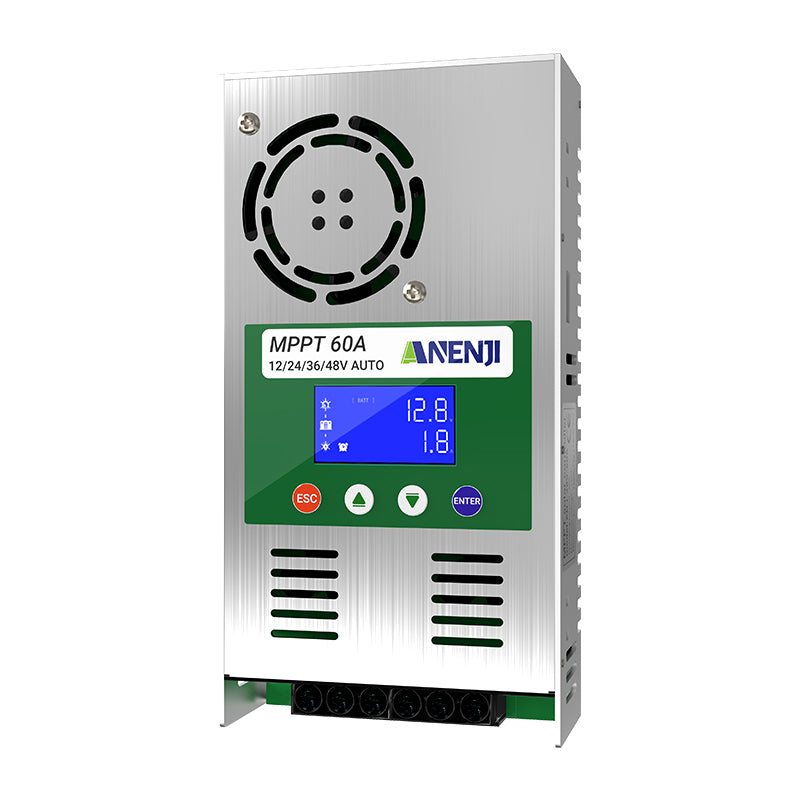

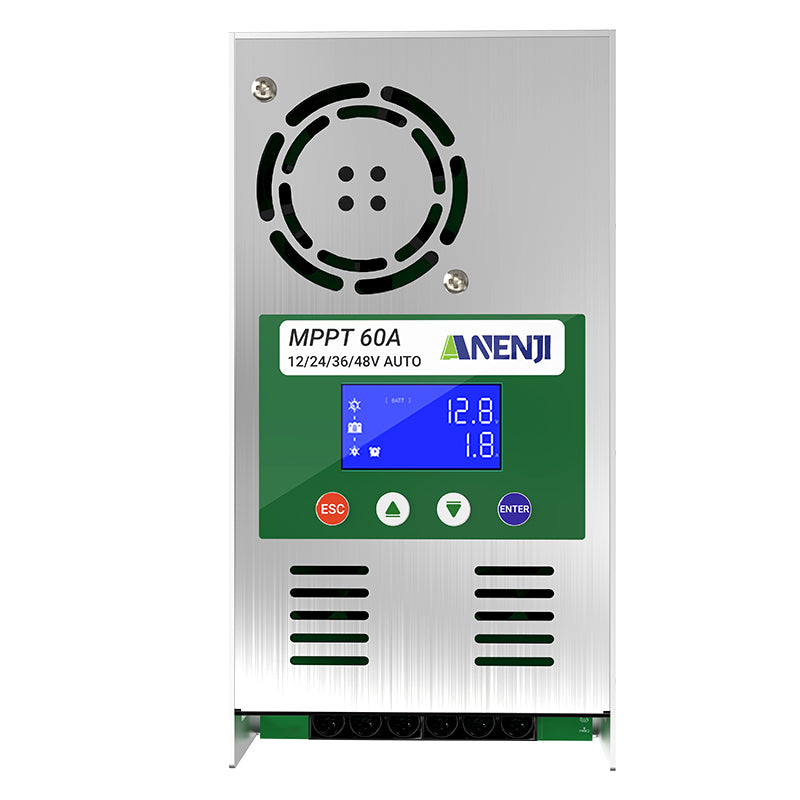

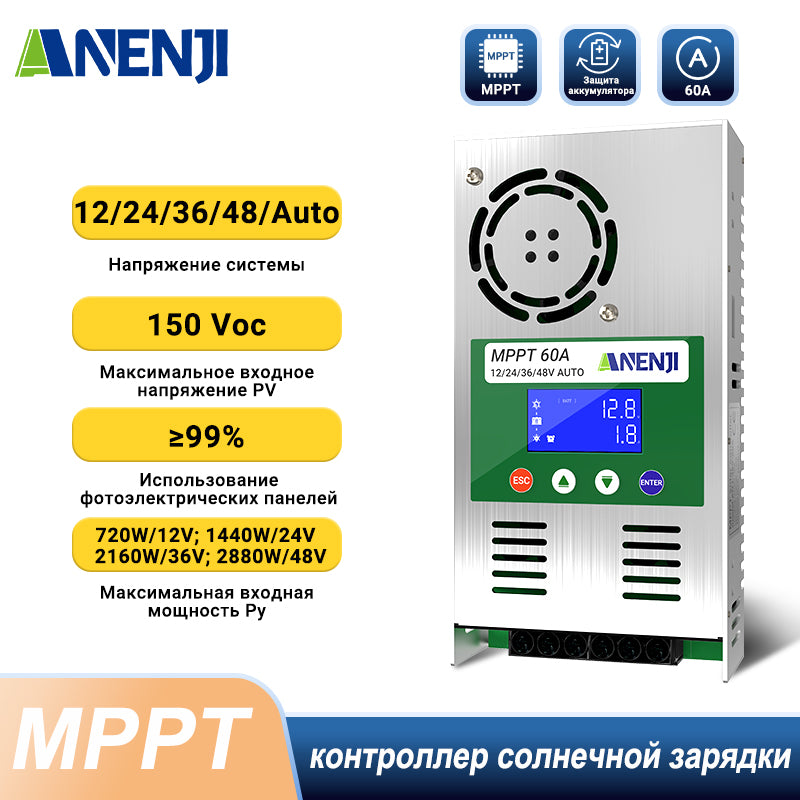

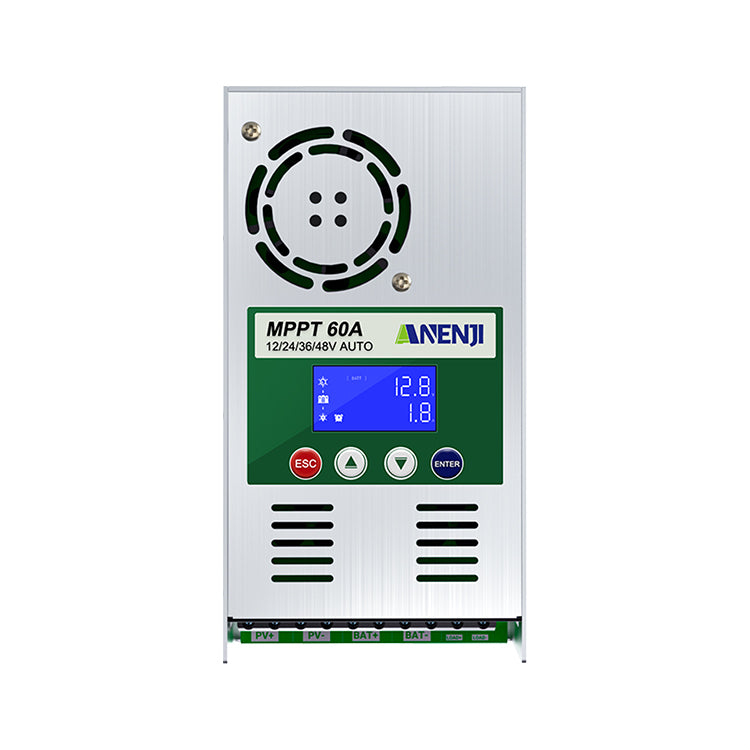

ANENJISOALR Power 60A MPPT Solar Charger Controller
ANENJISOALR Power 60A MPPT Solar Charger Controller
Couldn't load pickup availability
POWER Solar Charger Controller MPPT 60A and solar panel solar charge regulator 12V 24V 36V 48V Battery PV Input 150VOC

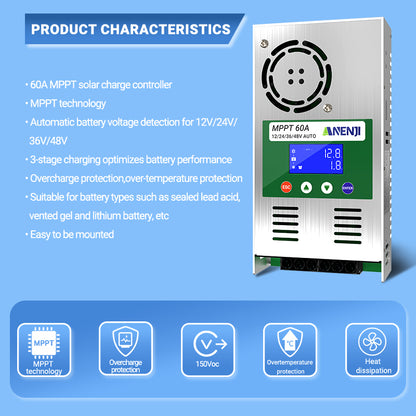

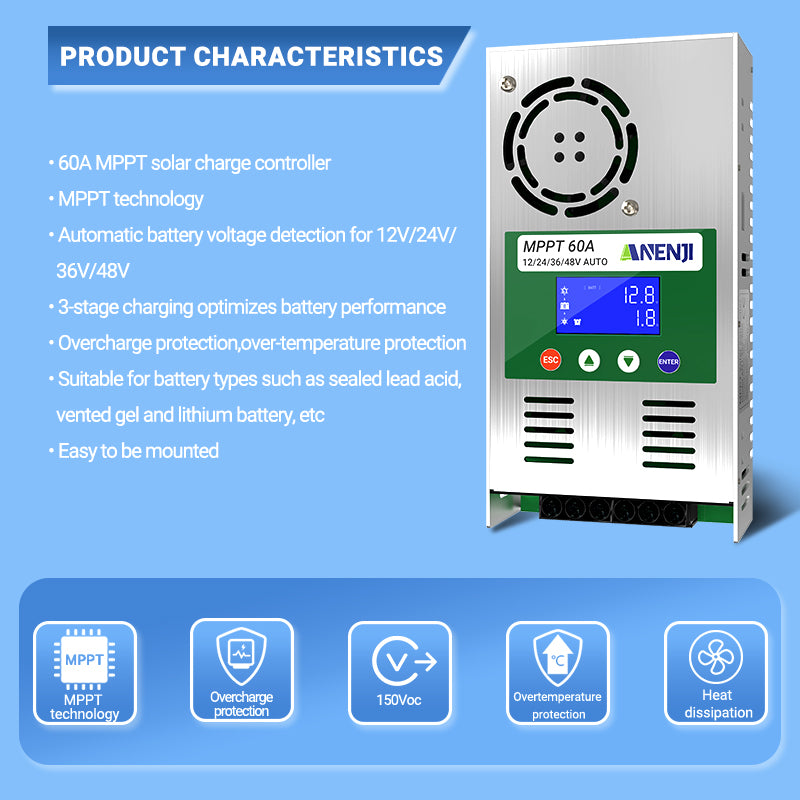

Features：
100% MPPT controller
Intelligent Maximum Power Point Tracking technology
Built-in DSP controller with high performance
Automatic battery voltage detection 12V/24V/36V/48V
Three-stage charging optimizes battery performance
Multi-function LCD displays
Reverse polarity protection of solar panel
Overcharge protection
Can be mounted easily
Suitable for battery types of sealed lead acid, vented Gel, and Lithium battery
Support unlimited parallel connection
|
Item |
Parameter |
||||||
|
Models |
IChargerMPPT6048 |
||||||
|
Chargingmode |
3-stage:constantcurrent(MPPT),constantvoltage,floating |
||||||
|
SystemVoltage |
12/24/36/48/Auto |
||||||
|
MaxPVInputPower |
720W/12V; 1440W/24V2160W/36V; 2880W/48V |
||||||
|
MaxPVInput Voltage |
150Voc |
||||||
|
Batteryvoltageautomaticrecognition |
12Vsystem(DC8.7V-DC15.5V)；24Vsystem(DC16V-DC31V) 36Vsystem(DC33V-DC41V)；48Vsystem(DC42V-DC64V) |
||||||
|
Overchargingprotectionvoltage |
12V system (16V)；24V system (32V)36Vsystem(48V)；48Vsystem(64V) |
||||||
|
Limitedcurrentprotection |
60A |
||||||
|
Maxefficiency |
≥98.1% |
||||||
|
PVutilization |
≥99% |
||||||
|
AutoTemperatureCompensation |
-3mV/2V/ºC |
||||||
|
ProtectionFunction |
|||||||
|
Temperatureprotection |
75℃ |
||||||
|
Fan-ontemperature |
>45℃ |
||||||
|
Fan-offtemperature |
<40℃ |
||||||
|
Properties |
|||||||
|
Size(mm) |
214x115x50 |
||||||
|
Netweight(Kg) |
1.1 |
||||||
|
Grossweight(Kg) |
1.2 |
||||||
|
Electromagneticcompatibility |
AccordtoEN61000,EN55022,EN55024 |
||||||
|
Enclosure |
IP21 |
||||||
|
Environmentaltemperature |
-20℃~+55℃ |
||||||
|
Storagetemperature |
-40℃~+75℃ |
||||||
|
BatteryParameters |
|||||||
|
BatteryType |
SystemVolt |
EQU |
|||||
|
GEL |
Auto |
14.2V |
|||||
|
SEL |
Auto |
14.6V |
|||||
|
FLD |
Auto |
14.8V |
|||||
|
USE |
Auto/12/24/36/48V |
Definedbyusers |
|||||
|
LI |
12/24/36/48V |
--- |
|||||
|
ThemaximumPVinputpower(ThetotalpowerratedofPVcan’tbeoverthiswattthatwillbreakthe controller.) |
12Vsystem(360W) |
||||||
|
24Vsystem(720W) |
|||||||
|
36Vsystem(1080W) |
|||||||
|
48Vsystem(1440W) |
|||||||
